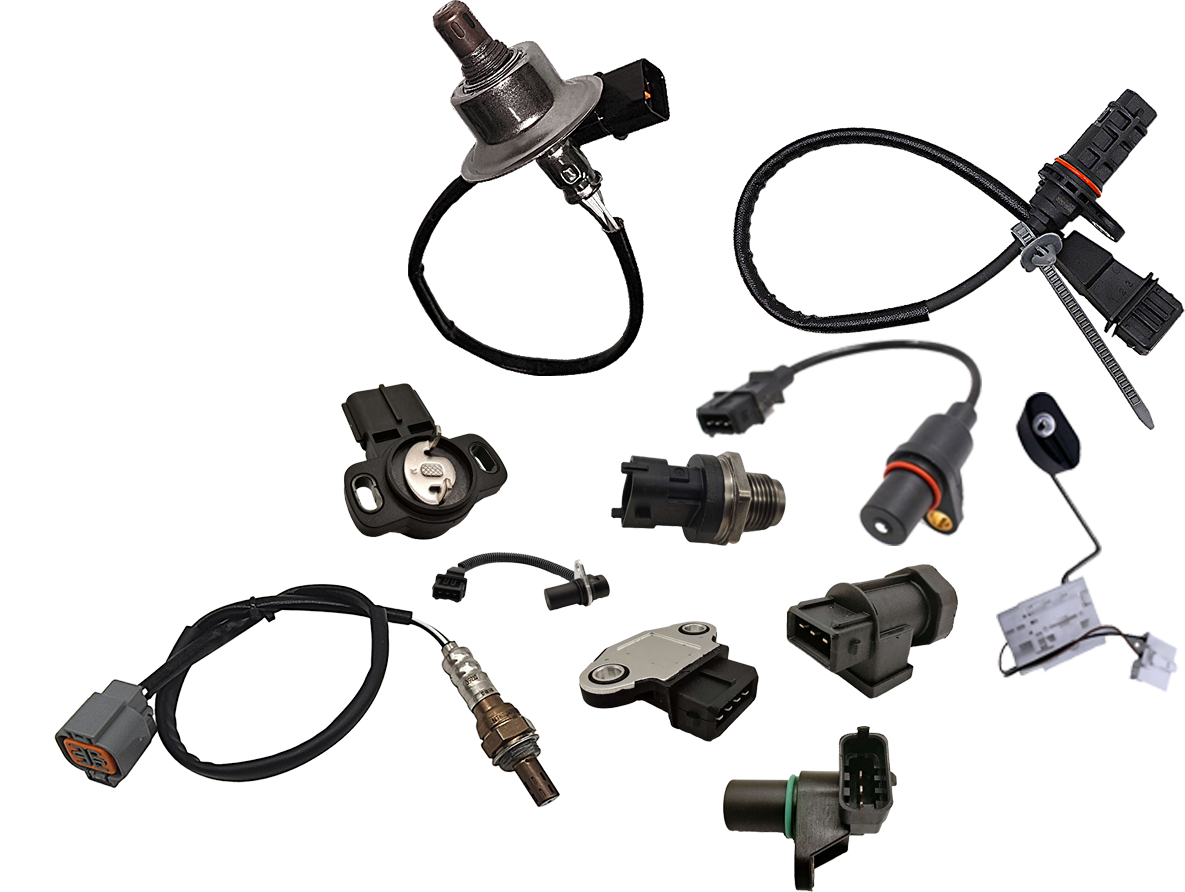

Throttle Sensor is a crucial component in modern automobile engines. It is responsible for monitoring the position of the throttle valve and sending signals to the engine control unit (ECU) to adjust the fuel injection and air intake accordingly. This ensures that the engine operates at optimal efficiency and performance. Here you can find the related products in Throttle Sensor, we are professional manufacturer of Throttle Position Sensor, TPS Sensor, TPS Throttle Position Sensor, Car Throttle Sensor, Auto Throttle Sensor. We focused on international export product development, production and sales. We have improved quality control processes of Throttle Sensor to ensure each export qualified product. Whatever you are a group or individual, we will do our best to provide you with accurate and comprehensive message about Throttle Sensor! Throttle Position Sensor, TPS Sensor, Car Throttle Sensor, Auto Throttle Sensor Guangzhou Taixin Auto parts Trading Co., Ltd. , https://www.taixinspareparts.com
Feature:
1. 304 stainless steel,316L stainless steel
2. Silicone O-ring plus plunger to assure a leak proof connection
3. Surface finish polish to sanitary standards
4. Recommended usage in wineries
5. End connections available: clamp and NPT
6. Sizes available: 1" clamp and 3/8" NPT
Technical specification
Material of Product WettedÂ
316L (DIN-1.4404)
Material of Non-product WettedÂ
304 (DIN-1.4301)Â
Seal material
PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2)
All seal materials comply with FDA 177.2600.Â
Continuous working temperatureÂ
-20C +135C (EPDM)Â
Sterilization temperatureÂ
150oC (Max 20min)Â
Working pressureÂ
0~10bar
Internal surfaceÂ
Ra0.8μm
External surfaceÂ
Shot blastingÂ
Size
DN6/M4,DN8/M4,DN15/W9
Application
Its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology
industries. As well as all other sectors requiring sanitary type equipment.
Aseptic sampling valve has two configurations.
1. Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective
and easy to operate.
2. Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated
by plastic hand wheel, and both angle and straight type structures are available.
Founded in 2011,Wenzhou Xusheng Machinery Industry and Trading Co.,Ltd is one of the manufactures which are capable of producing high precision stainless steel sanitary equipment and pipeline connection parts.We are a modern enterprise which integrates scientific research and production
Xusheng can provide a variety of products,such as sample valve,divert valve,mixproof valve,pressure relief valve, manual and pneumatic butterfly valve,check valve,diaphragm valve,ball valve, pipe fitting,manhole cover,pump,tube/pipe and other related products.All Xusheng products can be made according to different materials and industrials standard,such as SMS,DIN.3A,ISO,RJT,IDF,BS,DS and BPE.Our products are widely applied to dairy,food,beer,beverage,indsutry of equipment,and cosmetic industries.All technical aspects have reached the international leading levels and are in conformance with GMP requirements.Provide process design,machinery manufacturing,installation,technical training.
To get more Information at our websites:Â http://xushengvalves.en.made-in-china.com, http://www.xsvalves.comÂ
Sanitary Valves
Sanitary Butterfly Valves
Sanitary Check Valves Sanitary Ball Valves Sanitary Divert Valves Sanitary Diaphragm Valves Sanitary Sample Valves Sanitary Control Valves Sanitary Mixproof Valves
Sanitary Pipe Fittings
Sanitary Elbow
Sanitary Tee Sanitary Reducer Sanitary Cross Sanitary Triclamp Ferrule Sanitary Cap Sanitary Pipe Hanger Sanitary Tank Cleaning Ball Sanitary Hose Joint Sanitary Unions Sanitary Sight Glass Sanitary Strainer
Sanitary Manways
Sanitary Round Manway without Pressure
Sanitary Round Manway with Pressure Sanitary Square Manway Sanitary Oval Manway
Sanitary Pumps
Sanitary Centrifugal Pump
Sanitary Lobe Pump Sanitary Self Priming Pump
Sanitary Tanks
Storage Tank
Fermentation Tank Mixing Tank Warm-keeping Tank
Sanitary TubeÂ
Seamless TubeÂ
Weldless Tube
Sanitary Gasket
Silicone/EPDM Gasket for Triclamp
Silicone/EPDM Gasket for Union Silicone/EPDM Gasket for Butterfly Valve Silicone/EPDM Gasket for Manhole Cover
Â
Product Name:Stainless Steel SS316L Aseptic Sanitary Sampling Cock Sample Valve
Feature:
1. 304 stainless steel,316L stainless steel
2. Silicone O-ring plus plunger to assure a leak proof connection
3. Surface finish polish to sanitary standards
4. Recommended usage in wineries
5. End connections available: clamp and NPT
6. Sizes available: 1" clamp and 3/8" NPT
Technical specification
Material of Product WettedÂ
316L (DIN-1.4404)
Material of Non-product WettedÂ
304 (DIN-1.4301)Â
Seal material
PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2)
All seal materials comply with FDA 177.2600.Â
Continuous working temperatureÂ
-20C +135C (EPDM)Â
Sterilization temperatureÂ
150oC (Max 20min)Â
Working pressureÂ
0~10bar
Internal surfaceÂ
Ra0.8μm
External surfaceÂ
Shot blastingÂ
Size
DN6/M4,DN8/M4,DN15/W9
Application
Its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology
industries. As well as all other sectors requiring sanitary type equipment.
Aseptic sampling valve has two configurations.
1. Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective
and easy to operate.
2. Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated
by plastic hand wheel, and both angle and straight type structures are available.
Founded in 2011,Wenzhou Xusheng Machinery Industry and Trading Co.,Ltd is one of the manufactures which are capable of producing high precision stainless steel sanitary equipment and pipeline connection parts.We are a modern enterprise which integrates scientific research and production
Xusheng can provide a variety of products,such as sample valve,divert valve,mixproof valve,pressure relief valve, manual and pneumatic butterfly valve,check valve,diaphragm valve,ball valve, pipe fitting,manhole cover,pump,tube/pipe and other related products.All Xusheng products can be made according to different materials and industrials standard,such as SMS,DIN.3A,ISO,RJT,IDF,BS,DS and BPE.Our products are widely applied to dairy,food,beer,beverage,indsutry of equipment,and cosmetic industries.All technical aspects have reached the international leading levels and are in conformance with GMP requirements.Provide process design,machinery manufacturing,installation,technical training.
To get more Information at our websites:Â http://xushengvalves.en.made-in-china.com, http://www.xsvalves.comÂ
Sanitary Valves
Sanitary Butterfly Valves
Sanitary Check Valves Sanitary Ball Valves Sanitary Divert Valves Sanitary Diaphragm Valves Sanitary Sample Valves Sanitary Control Valves Sanitary Mixproof Valves
Sanitary Pipe Fittings
Sanitary Elbow
Sanitary Tee Sanitary Reducer Sanitary Cross Sanitary Triclamp Ferrule Sanitary Cap Sanitary Pipe Hanger Sanitary Tank Cleaning Ball Sanitary Hose Joint Sanitary Unions Sanitary Sight Glass Sanitary Strainer
Sanitary Manways
Sanitary Round Manway without Pressure
Sanitary Round Manway with Pressure Sanitary Square Manway Sanitary Oval Manway
Sanitary Pumps
Sanitary Centrifugal Pump
Sanitary Lobe Pump Sanitary Self Priming Pump
Sanitary Tanks
Storage Tank
Fermentation Tank Mixing Tank Warm-keeping Tank
Sanitary TubeÂ
Seamless TubeÂ
Weldless Tube
Sanitary Gasket
Silicone/EPDM Gasket for Triclamp
Silicone/EPDM Gasket for Union Silicone/EPDM Gasket for Butterfly Valve Silicone/EPDM Gasket for Manhole Cover
Â
Model NO.: XS-SV0006
Clamped Size: 50.5mm, 34mm
Type of Sample Valve: Handle Wheel Fine-Tu
Temperature of Media: Normal Temeprature
Media: Water, Milk, Juice, Beer, Dairy, Pharmaceutical
Trademark: XUSHENG
Transport Package: Shrink Wrap-Carton Case-Exporting Plywood Case
Specification: ISO, 3A, SMS, DIN
Origin: Made in China, China
HS Code: 8481804090
Model NO.: XS-SV0006
Clamped Size: 50.5mm, 34mm
Type of Sample Valve: Handle Wheel Fine-Tu
Temperature of Media: Normal Temeprature
Media: Water, Milk, Juice, Beer, Dairy, Pharmaceutical
Trademark: XUSHENG
Transport Package: Shrink Wrap-Carton Case-Exporting Plywood Case
Specification: ISO, 3A, SMS, DIN
Origin: Made in China, China
HS Code: 8481804090
